Examples

Six scripts in examples/, each standalone with its settings at the top. Run them from the repository root. The numbers and figures below are their measured output: the first four on a CPU (login node of an HPC system, jax 0.6.2), the optimization on one A100.

script needs shows
growth_rate.py nothing one growth rate from a saved EquilibriumData
cross_sections.py matplotlib eigenfunction cross sections of a stellarator and a tokamak
basis_comparison.py nothing the convergence of the radial bases (paper, Fig. 7)
optimization_step.py nothing solve mode against optimize mode: one gradient step
matrix_free_solve.py nothing the matrix-free operator and the ring preconditioner
desc_optimization.py DESC, a GPU three optimizer steps through DESC with AgniStability

A growth rate: growth_rate.py

python examples/growth_rate.py

Loads tests/data/qh_lowres_24x12x8.npz, the shipped QH case (one field period, NFP = 4), builds the basis its export recorded (Legendre-Lobatto through the staircase map), and solves with the default eigsh (36 s on a CPU):

loaded qh_lowres_24x12x8.npz: (24, 12, 8) nodes, NFP=4
gamma^2           +1.3376268705e-04
Rayleigh residual 5.580e-06
eigenvector       6720 retained degrees of freedom

verdict: UNSTABLE
         |gamma^2| / 1e-10 = 1.34e+06 (needs to be >> 1)

Eigenfunctions: cross_sections.py

python examples/cross_sections.py            # both cases
python examples/cross_sections.py DSHAPE     # one

Two cases in examples/data, exported by tools/export_desc_example.py (the command is in each .json sidecar), solved with the dense solver and drawn in the (R, Z) plane: deltaV and the three displacement components, the stellarator at zeta = 0 and pi / NFP, the tokamak at zeta = 0.

case basis grid gamma^2 recorded
modified LBD QH Legendre-Lobatto, x_0 = 0.65 24x12x8, one field period 1.337527e-4 (residual 1.3e-3) 1.337527e-4 (7e-10 apart)
modified DSHAPE, n = 3 coupled Zernike-Fourier, M = 12, penalty 0.02 64x48x1, one plane 2.617129e-4 (residual 4.4) 2.617152e-4 (9e-6 apart)

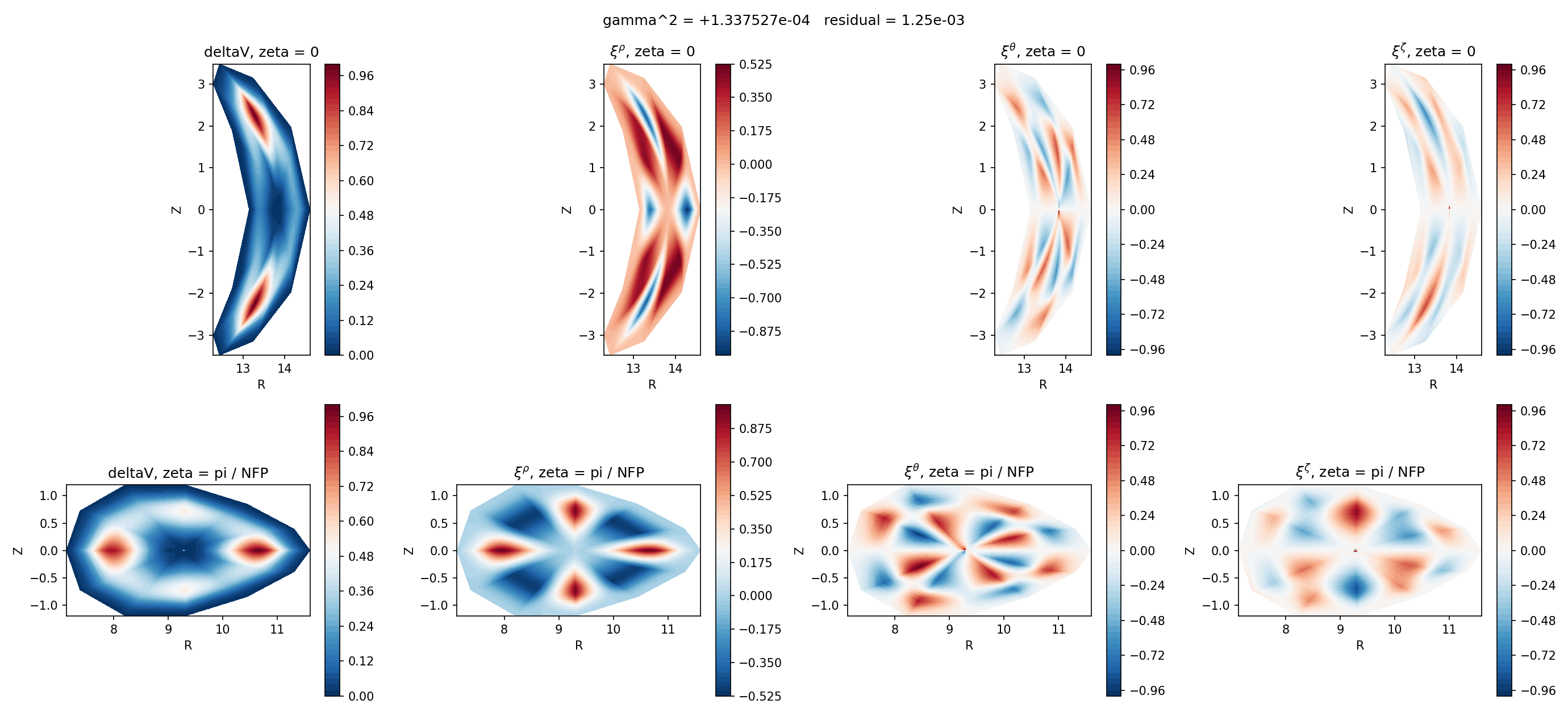

LBD QH eigenfunction

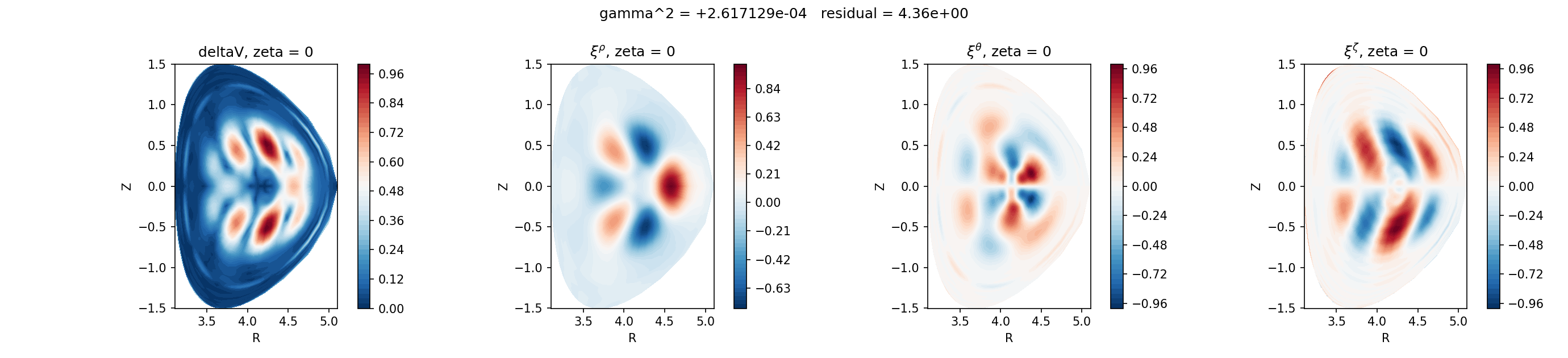

DSHAPE eigenfunction

Radial bases: basis_comparison.py

python examples/basis_comparison.py

Differentiates rho^4 exp(-20 (rho - 0.4)^2) (sin 3 theta + sin 4 theta) cos 5 zeta with each radial basis and reports the sup-norm error against the exact derivative as n_rho grows (35 s on a CPU):

 n_rho    legendre-lobatto        radau-jacobi            b-spline   finite-difference
    16           5.985e-03           1.724e-02           4.031e-03           1.157e-02
    24           2.599e-04           5.350e-04           2.173e-03           4.547e-03
    32           1.933e-06           9.649e-06           4.487e-04           2.330e-03
    48           2.524e-10           1.515e-09           4.756e-05           9.303e-04
    64           1.295e-14           9.586e-14           1.417e-05           4.940e-04
    96           5.052e-15           5.684e-14           2.197e-06           2.068e-04

One gradient step: optimization_step.py

python examples/optimization_step.py

Solve mode (growth_rate, not differentiable: jax.grad raises) against optimize mode (growth_rate over a params -> EquilibriumData map). The map here only rescales the minor radius a, which is not a physical parameterization; the point is the interface and that the gradient's direction is right (134 s on a CPU):

solve mode: gamma^2 +1.337627e-04 (UNSTABLE)
solve mode: jax.grad refused -- growth_rate is solve mode and is not differentiable.

optimize mode: gamma^2 +1.337627e-04   (same solve, same number)
               dgamma^2/da +4.707928e-04

a: 1.704733273 -> 1.704562800   (-1.000e-04 relative)
gamma^2: +1.337627e-04 -> +1.336824e-04   (-8.024e-08)
step direction: correct

dgamma^2/da from a user-defined objective: +4.707928e-04

Matrix-free operator: matrix_free_solve.py

python examples/matrix_free_solve.py

On the shipped case, where the dense matrix is available as the reference: matfree_operator applies the matrix assemble_dense builds without forming it (5.3e-16 relative), and the ring blocks of the preconditioner are its exact sub-blocks, built by a vmap and factored.

Optimization through DESC: desc_optimization.py

python examples/desc_optimization.py

The shipped low-resolution QH equilibrium (tests/data/AGNI_QH_lowres.h5, DESC L = 22, M = 14, N = 10), three steps of proximal-lsq-exact in the eight boundary modes with max(|m|, |n|) <= 1, force balance as a constraint (and in the objective, weight 500), profiles and Psi fixed. The stability term is AgniStability (weight 100, target 0) on a 24x12x8 Lobatto basis through the staircase map, MPOL = 5, NTOR = 3, family 0, with SOLVER = "jd" (coarse level basis.coarse(), 24x11x7) or "dense", sigma = 1e-3. The script records gamma^2 at every evaluation and draws the figure; the measured run of each solver on one A100:

accepted step cost, dense cost, JD gamma^2, dense gamma^2, JD
0 9.752e-5 9.752e-5 1.33763e-4 1.33763e-4
1 2.291e-5 2.291e-5 5.534594e-5 5.534594e-5
2 1.677e-5 1.677e-5 4.385812e-5 4.385941e-5
3 8.288e-6 8.288e-6 1.525200e-5 1.525657e-5

Wall time 344 s dense, 555 s JD (13 evaluations each; at this size the dense matrix is small). The two curves lie on top of each other:

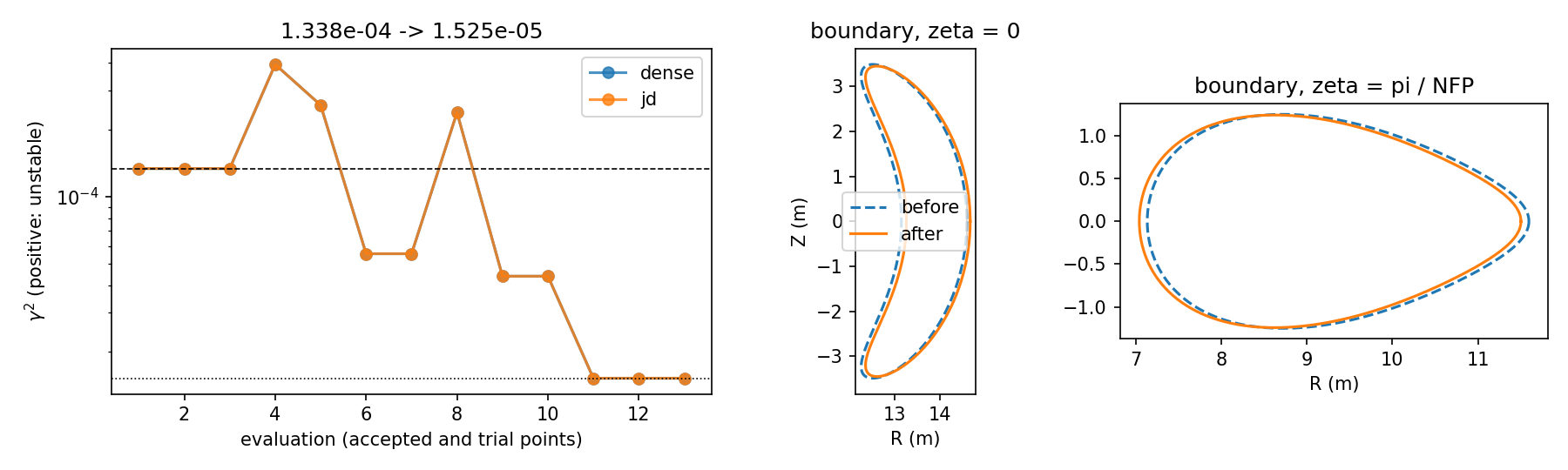

DESC optimization

Left: gamma^2 at each of the 13 evaluations (trial points included; dashed and dotted lines are the start and the end). Middle and right: the boundary before and after at zeta = 0 and pi / NFP. gamma^2 falls by a factor 8.8 in three steps while the boundary moves little; the force-balance residual stays at the solve level. How the objective and its derivative work is explained on the DESC coupling page (#58).
